American design company Ultradyne has released its Apollo muzzle brake. Utilizing advanced imaging and precision instrumentation, internal testing has shown as much as a 25% advantage over previous industry-leading designs.
![]() |
![]() |
![]() |
As with all Ultradyne muzzle devices_ Apollo supports available Dynamount accessories such as the C4 Sight |
Ultradyne offers a variety of muzzle devices that provide different levels of recoil reduction and sonic signatures to fit the needs of different shooters.
Apollo stands as a no-compromise, recoil-reducing phenom that enables nearly instantaneous follow-up shots and is an excellent option for competition shooters who want the last word in recoil performance.
With a design that fits within the 3-inch length and 1-inch diameter requirements of 3 Gun Nation, USPSA, and IPSC, all shooters can take advantage of features inspired by competitive shooting.
Apollo’s unique design includes angled muzzle-rise compensation ports at the end of the device that direct gasses away from the shooter’s line of sight to avoid the vision-dazzling effects inherent in other designs. 100% CNC machined in the USA, each port was located, sized, and shaped for maximum flow utilizing a combination of modeling and precision testing. Until now such a high level of recoil reduction was not possible from a device of practical size, but Ultradyne’s science- and engineering-oriented approach brings this game-changing technology to the shooting public.

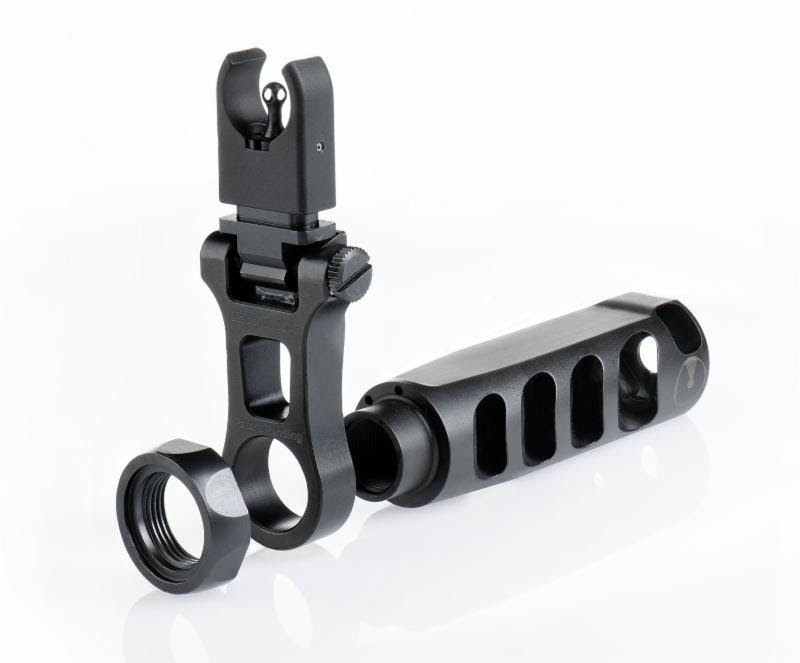

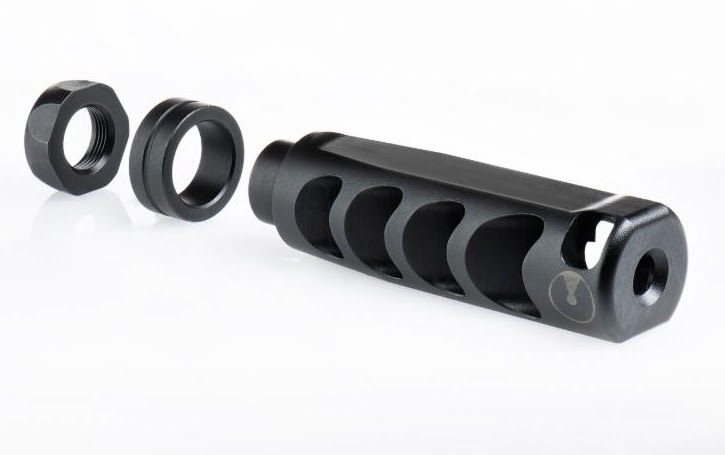

Apollo includes the Ultradyne-exclusive shrouded timing nut along with a Dynamount collar for quick, easy mounting. |
The performance advantages of Apollo are soon to be available in other calibers as well. Ultradyne is currently tuning the design for .308 / 7.62 and .264 / 6.5mm, bringing competition-grade performance to users of firearms in those calibers.

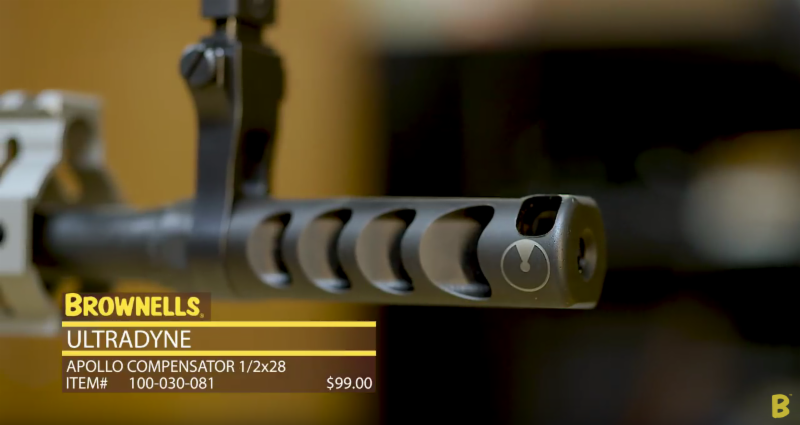

Brownell’s has produced an excellent video on Ultradyne’s muzzle devices. Click the image below to view:
Apollo 223 | 5.56 Technical Specs
- CALIBER .223 | 5.56 or smaller
- BARREL THREAD 1/2-28 UNEF-2B
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 124 grams | 4.4 ounces
- Total 147 grams | 5.2 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 13/16 inch
![Ultradyne's Apollo Muzzle Brake: The 25% Advantage](https://ci4.googleusercontent.com/proxy/CiyOaZZxn0XQMJnehtMOBdxmEJa3BoE_W2EzeP9NSvBJ-_hvdYAH-5oU-tB0Dnad19ObWoVPd_1nWQJ1jCmvqiErQ5TKwchSCPWGGQIKoUOyUYU8OQPUH8MVYcbUani35e0OacpnFlsr07E=s0-d-e1-ft#http://files.constantcontact.com/3476ea4d401/07d2c5b2-290d-4fd9-a8dd-cf3cf32e4d38.jpg)
![Ultradyne's Apollo Muzzle Brake: The 25% Advantage](https://ci4.googleusercontent.com/proxy/_qt-Almck5_yU0GfOaXJCUJCuBR32tA8MhpHsBuVuKJRZ7CWzJLzVfG9dkaAXCD9pmoPr2SXx_XKWBFjooULuq_-dZ4ygEsr_kleGZQo5crK2RIkRA46ZrRicC4-I-aBlsMzPb8n_Yhtya8=s0-d-e1-ft#http://files.constantcontact.com/3476ea4d401/f3f87280-0ad0-4f47-a614-e1d904b71e83.jpg)
![Ultradyne's Apollo Muzzle Brake: The 25% Advantage](https://ci6.googleusercontent.com/proxy/FyYu4fgVzT8ku9JvDwQWw93J1302rYByEvYrCLjfAWHiEt5r89Ro_KYAixCF5-Aw-6QR8FmiiMXBvooB4Tph7QT81KM_HR4pNWIb79Xw7R5INbZvv9onGqT8M-QE4Hl5BTN5jxcB4LRtUTA=s0-d-e1-ft#http://files.constantcontact.com/3476ea4d401/104b99b8-7e28-4b44-a725-5f19166ad0a2.jpg)
Apollo is part of Ultradyne’s family of performance muzzle devices, each representing a different combination of recoil reduction and sonic characteristics.
The Apollo brake is available directly from Ultradyne as well as Brownell’s and MidwayUSA.
